1:1 display mode

You can choose to view images using a 1:1 display mode where 1 image pixel equals 1 monitor pixel. This allows you to view all pixels as they were acquired, without any interpolation. You may also want to use the 1:1 display mode for monitor quality control when using synthetic images such as AAPM test patterns.

Before using the 1:1 display mode, you must configure your monitor and browser. You must also enable the 1:1 toolbar icon in your tool preferences.

Configure your environment to use the 1:1 display mode

Check the following display settings for your monitor.

  1. Use the recommended screen resolution.
  2. Use a 100% display scale.
  3. Use a 100% text DPI scale.

In your browser settings, set the zoom to 100%.

Enable the 1:1 display mode

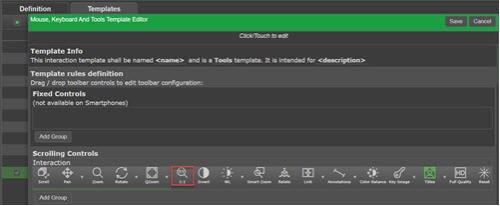

Create a Tools template that includes the 1:1 tool. For details, see Change tool preferences.

Apply the 1:1 display mode

  1. Select 1:1 (toolbar).
  2. To remove the 1:1 display mode, select Reset (toolbar). The 1:1 display mode will also be removed if the image zoom factor is changed.
