Overview of the QC viewer

The following information is shown for the studies in the QC Viewer. The studies are organized by patient.

  Patient  Patient information is shown first. Click (or tap) the patient name to view details.

  Studies  The patient’s studies are listed by date. Each study is shown on a separate row. Click (or tap) the study title to view details.

  Series  Thumbnails for the series in the study are shown. Series can be color-coded according to the series type.

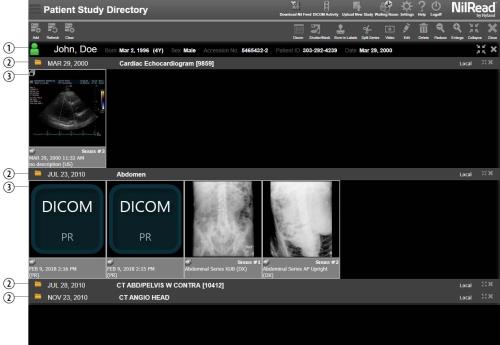

The following example shows one patient with four studies. The last two studies have been collapsed so that only the study date and title are shown.
